Audio

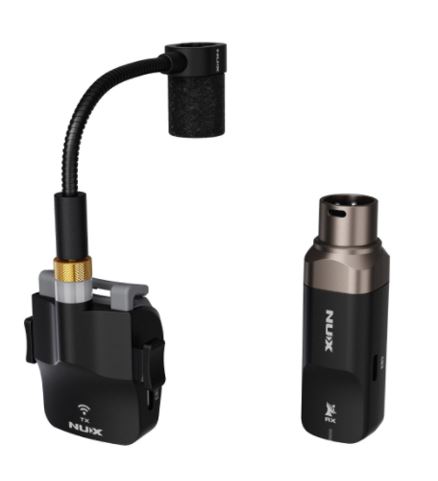

2.4GHz Wireless System for Saxophone.

High-resolution 24-bit/44.1kHz audio, and the frequency response range is 20Hz - 20kHz.

A unique Patent-pending Shock- absorbing structure to team up with the custom tuned electret condenser microphone to provide best-in-class audio.

It can be attached to the bell of different types of Saxophones firmly.

Specifications

• Operating Frequency Band 2.4 GHz.

• Audio Quality 24-bit / 44.1 kHz.

• Operation Range: Up to 20 meters / 67 feet line-of-sight (environment-dependent).

• Frequency Response 20 Hz – 20 kHz.

• Latency Less than 4ms.

• THD+ Noise Less than 0.2% 1kHz @-10dbFS.

• Auto-sleep Mode After 10 minutes without operation.

• Built-in Battery Capacity 3.7V/500mA (Transmitter&Receiver).

• Power Case Battery Capacity: 3000mAh.

• Battery Life: Up to 7 hours of playing time.

• Dimensions: 153(L) x 113(W) x 55(H) mm.

• Weight: 389g

Guitar Direct Box w/phantom power

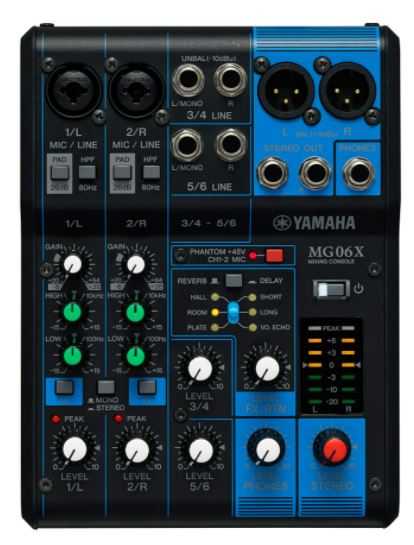

6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus

• 6-Channel Mixing Console
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• “D-PRE” mic preamps with an inverted Darlington circuit
• High-grade effects: SPX with 6 programs
• XLR balanced outputs
• PAD switch on mono inputs
• +48V phantom power
• Metal chassis
• Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
• Net Weight: 0.9 kg (1.98 lbs.)

10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
• Net Weight: 2.1 kg (4.63 lbs.)

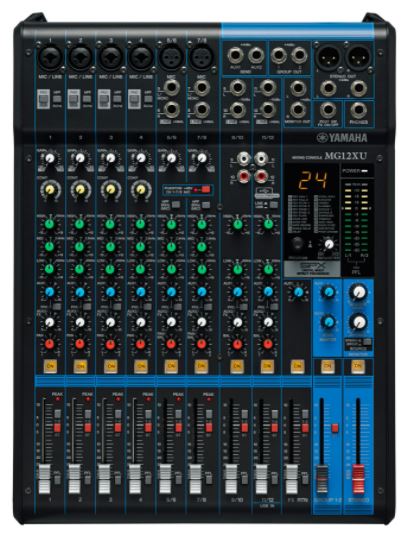

12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)

• 12-Channel Mixing Console
• Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
• 2 GROUP Buses + 1 Stereo Bus
• 2 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Optional Rack Mount Kit RK-MG12 Available
• Metal chassis
• Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
• Net Weight: 4.2 kg (9.3 lbs.)

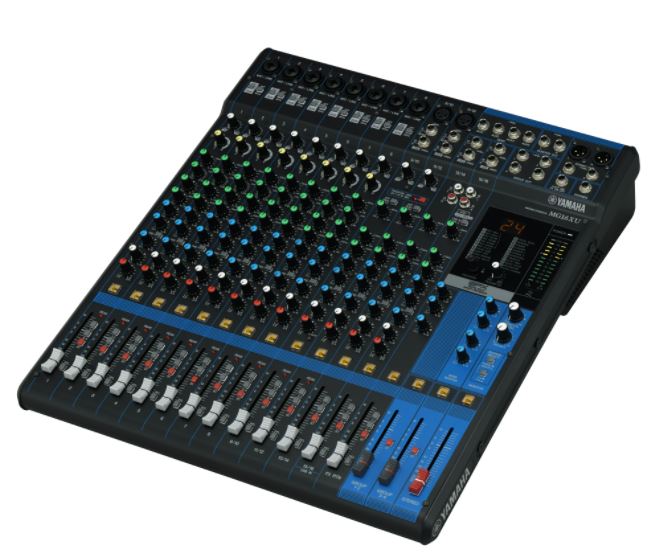

16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

• 16-Channel Mixing Console
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit/192kHz 2in/2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis
• Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
• Net Weight: 6.8 kg (15.0 lbs.)
